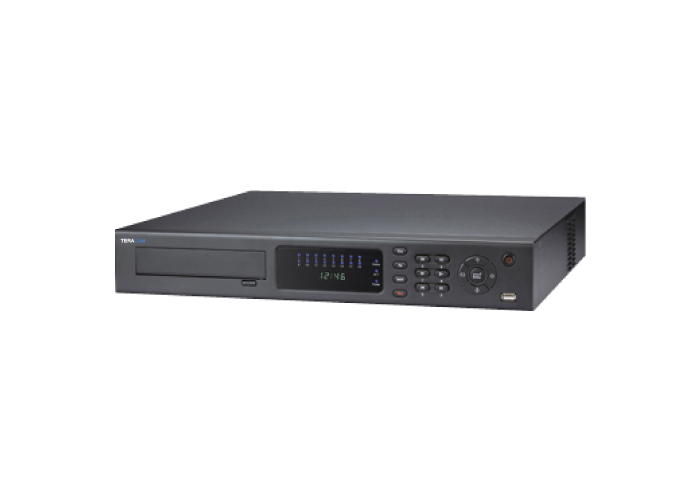

1. 16 channel full D1 standalone DVR
2. Up to 16 cameras with full HD 1080P display
3. H.264 dual-stream video compression
4. Full channel D1(4CIF) realtime recording
5. HDMI / VGA / TV / Spot (BNC) synchronous video output
6. Live, recording, playback, backup & remote access
7. 16 channel simultaneous realtime playback & smart search
8. Smart video detection: MD, camera blank, video loss
9. 3D intelligent positioning with PTZ dome camera
10. Easy backup: USB devices, CD/DVD-RW & network download
11. Alarm triggering screen tips, buzzer, PTZ, e-mail & FTP upload
12. Support 4 SATA HDDs & CD/DVD-RW, 1 eSATA, 2 USB2.0
13. Built-in web server, multi-DVR client, DMSS & CMS



Main Processor :	High performance embedded microprocessor
Operating System :	Embedded LINUX
System Resources :	Pentaplex function: live, recording, playback, backup & remote access
Control Mode :	Front panel, USB mouse, IR remote control, Keyboard, Network
Video Input :	16 channel, BNC(1.0Vp-p, 75Ω)
Standard :	NTSC(525Line, 60f/s), PAL(625Line, 50f/s)
Video Output :	1 HDMI, 1 VGA, 1 TV, 1 Spot, BNC(1.0Vp-p, 75Ω)
Audio Input :	4 channel, BNC(200-2800mV,30KΩ)
Loop Output :	16 channel
Audio Output :	1 channel, BNC(200-3000mV,5KΩ)
Bidirectional Talk :	1 channel Input, BNC(200-2800mV, 30KΩ), 1 channel Output, BNC(200-3000mV, 5KΩ)
Display Split :	1/4/8/9/16
Spot Split :	1/4/8/9/16
Resolution :	1920×1080, 1280×1024, 1280×720, 1024×768, 800×600
Tour Display :	Support
Privacy Masking :	4 self-defined four-sided zones for privacy masking for each camera
OSD :	Camera title, time, video loss, camera lock, motion detection, recording
Video/Audio Compression :	H.264 / G.711
Image Resolution :	D1/4CIF(704×576/704×480) / HD1(352×576/352×480) / 2CIF 704×288/704×240) / CIF(352×288/352×240) / QCIF(176×144/176×120)
Encoding Speed :	Main Stream: D1/HD1/2CIF/CIF(1~25/30fps),Extra Stream: CIF/QCIF(1~25/30fps)
Bit Rate :	32~4096Kb/s
Image Quality :	1~6 level(level 6 is the best, VBR effectively)
Recording Mode :	Manual, Schedule(Regular(Continuous), MD(Video detection: Motion detection, Camera blank, Video loss), Alarm), Stop
Recording Priority :	Manual /Alarm /MD /Regular
Recording Interval :	1~120 min. (default: 60 min.), Pre-record: 1~30 sec., Post-record: 10~300 sec.
Trigger Events :	Recording, PTZ movement, Tour, Alarm, Email, Spot output
Motion Detection :	Zones: 396(22×18), Sensitivity: 1~6 (level 6 is highest)
Video Loss & Camera Blank :	Support
Alarm Input :	16 channel
Relay Output :	6 channel
Playback Channel :	1/2/4/All
Search Mode :	Time/Date, Alarm, MD & Exact search (accurate to second), Smart search
Playback Functions :	Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle,Backup selection, Digital zoom(any size)
Backup Mode :	Flash drive/ USB HDD/ USB CD&DVD-RW / eSATA Device / Built-in SATA burner/ Network download
Ethernet :	RJ-45 port (10/100M/1000M)
Network Functions :	HTTP, TCP/IP, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPOE, DDNS, FTP, Alarm Server
Remote Operation :	Monitor, PTZ control, Playback, System setting, File download, Log information
Hard Disk :	4 SATA ports, 4 HDDs or 3 HDDs + 1 CD/DVD-RW, Max 2TB per HDD supported
eSATA :	1 port, Recording & Backup
Space Occupation :	Audio: 28.8MB/H, Video: 56~1800MB/H
HDD Management :	Hard disk hibernation technology, HDD faulty alarm & Raid(Redundancy)
USB Interface :	2 ports, 1 for mouse control, 1 for backup
RS232 :	keyboard, PC communication
RS485 :	PTZ control
Power Supply :	AC 100-240V,50/60 Hz
Power Consumption :	40W
Working Environment :	-10 ~+55°C / 10~90%RH / 86~106kpa
